The Drive Titan AXS mid-wheel Drive Powerchair features a captain’s seat, that is available in 7 different width and depth combinations, is height adjustable, reclines, swivels in 45° increments, and has a height-adjustable headrest. Its padded, contoured armrests are height, width, and angle adjustable. The flip-up footplate is height, depth, and angle adjustable. The Titan AXS also has a programmable controller with Bluetooth electronics for easy troubleshooting and service.
FEATURES
- AXS mid-wheel drive platform for the best-in-class turning radius and ultimate stability over uneven terrain and ramp transitions
- Contoured captain’s seat available in 7 different width and depth combinations with the seat to floor height adjustments, a reclining back, and a height-adjustable headrest
- Padded, contoured armrests with height, width, and angle adjustment
- Captain’s seat swivels in 45 degrees locking increments for easy transfers
- Adjustable length controller mount
- Interchangeable color panels in red and blue included
- Flip-up footplate with height, depth, and angle adjustment
- Positioning belt included

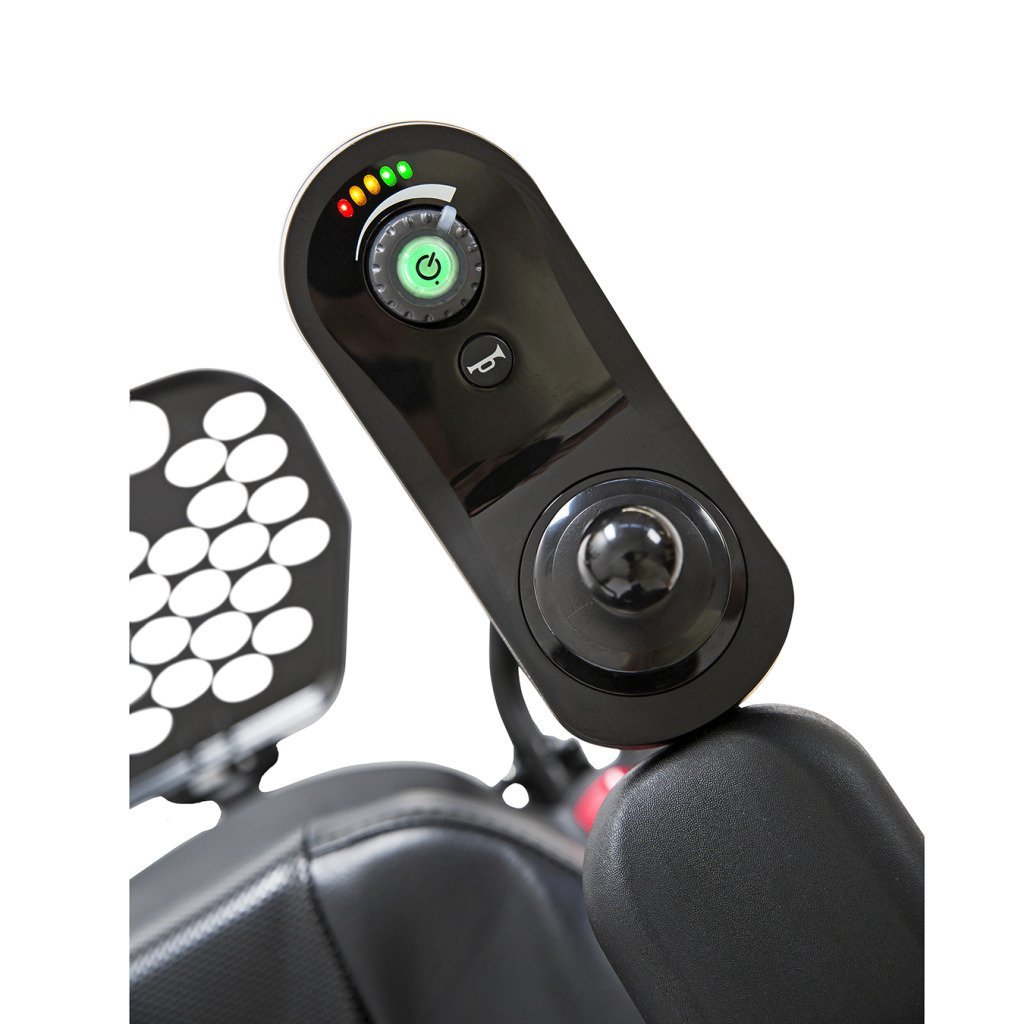

- Programmable controller with Bluetooth electronics for easy trouble-shooting and service
- Flat-free, non-marking tires
- Easy freewheel operation
SPECIFICATIONS
| Back Height | 18″ |
| Base Weight | 87 lbs. |
| Batteries (pair) | 12V x 33AH |
| Battery Charger | 4A |
| Battery Weight (pair) | 44 lbs. |
| Brakes | Electromagnetic |
| Caster Wheels | 6″ x 2″ |
| Controller | Dynamic Linx 40A |
| Drive Wheels | 10″ x 3″ |
| Estimated Range | 19 miles |
| Freewheel Mode | Yes |
| Ground Clearance | 2.5″ |
| Max Climbing Angle | 6° |
| Motor | 320W x 4600RPM |
| Overall Dimensions | 39.25″ (L) x 23.5″ (W) x 44″ (H) |
| Seat Dimensions | 16″ | 18″ | 20″ | 22″ |
| Seat To Floor Height | 20.75″ | 21.75″ |
| Seat Weight | 40 lbs. |
| Tires | Flat Free |
| Top Speed | 4 mph |
| Total Weight (excl. hand control) | 171 lbs. |
| Turning Radius | 20″ |
| Warranty on Batteries | 12 Months |
| Warranty on Electronics | 24 Months |
| Warranty on Frame | Limited Lifetime |
| Weight Capacity | 300 lbs |
| Weight Capacity (13046 | 13046-HD) | 300 lbs. |
